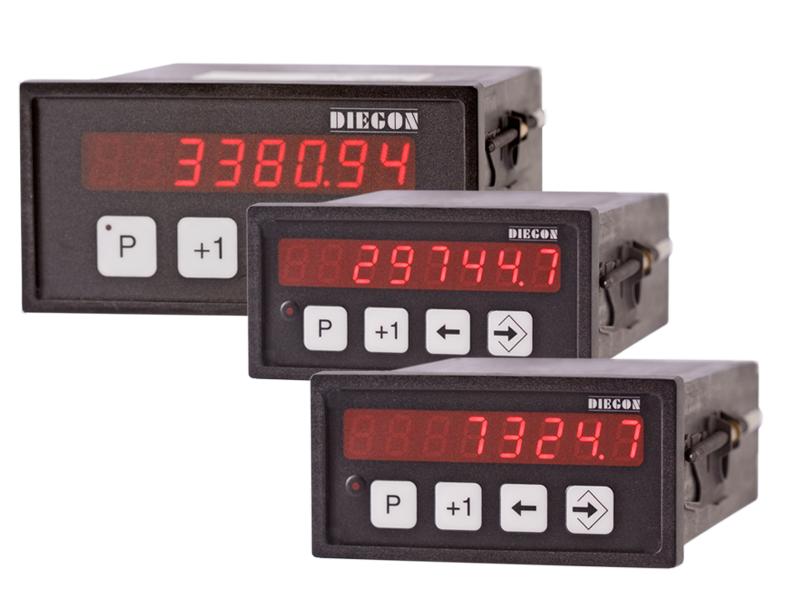

AP80 Diegon display with linearisation function


The AP80 is designed to display position and velocity, to be used as an electronic camshaft, to convert signals and has the abilities to solve complex and unusual applications.
For this, the AP80 uses a sensor input that can handle various kinds of position signals. The position and velocity values can be adjusted through a set of parameters.

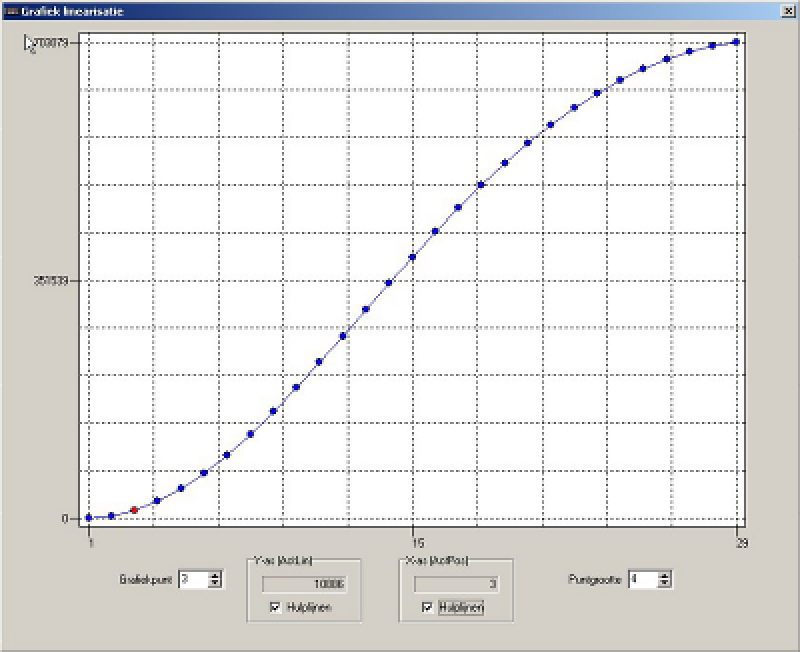

Linearization function
The linearization function allows to display and process nonlinear motions. The actual display position (sensor position) is converted into an additional value “actual position linearization”. Interpolation takes place between these points.
This additional value can serve as a source for the cams function, analog output or data output.
