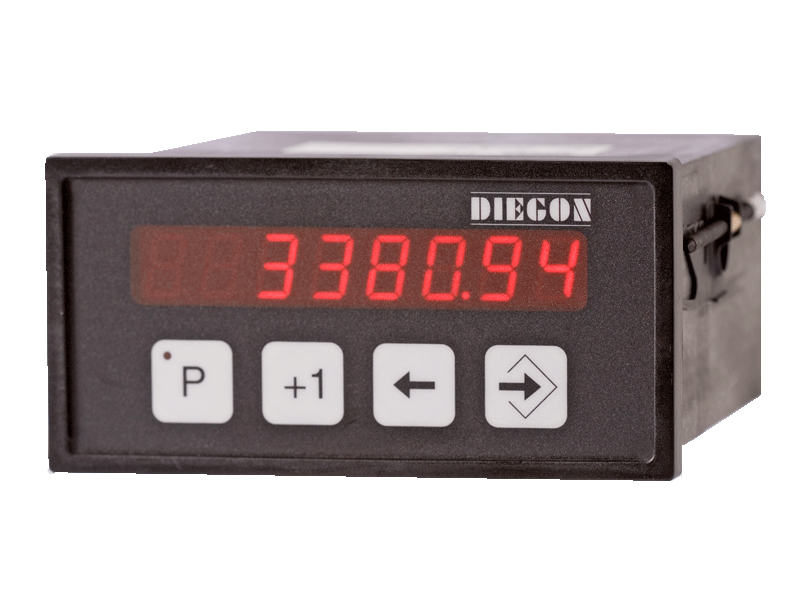

AP80 Display Controller

  • Display for position and speed
  • Cam controller
  • Signal converter
  • Speed monitor

The uC controlled AP80-XXX has interfaces for several sensors. Position as well as speed can be displayed. Switching points or preset can be set for both. The unit can be supplied with a modul for 32 tri-state data outputs or a modul with 48 in- or outputs. Front buttons or the DST40 programming tool can be used for setting up.

Discription Data
Supply voltage 10 - 35V DC
Frontsize 144 x 72 mm
Display 8 digits, 14 mm
Sensorinput Incremental, SSI, Parallel, Start/Stop
Digital inputs 6
Digital outputs 9
Analog output 1 (optional)
Communication RS232, RS422/485, CANbus
Data in- en uitgangen 32 Tristate (F modul) / 48 in and 48 out (P modul)
